BayCruiser 21: A Closer Look at Swallow Yachts’ Trailblazing Model

Shown at boot Düsseldorf 2024, the BayCruiser 21 from Swallow Yachts combines a lifting centreboard and rudder with water ballast and a two-berth cabin. Its clinker-style hull and high bow retain the yard’s familiar appearance.

The builder lists an empty weight of 600kg and 400kg of water ballast. Its standard specification describes one 400-litre tank in the bottom of the hull, filled through an external bung at the aft end of the centreboard-case recess. The centreboard has a ballast weight encapsulated in its tip; this is separate from the water ballast.

Courtesy Swallow Yachts

Swallow Yachts describes the boat as self-righting when the ballast tank is full. This is a builder’s claim, not the result of an independent test reported here. Ballast operation should follow the instructions for the individual boat. Towing suitability also depends on the complete loaded trailer weight and the tow vehicle’s limits.

The cabin sleeps two, while the self-draining cockpit has seating for up to six, according to the builder. The lifting centreboard and rudder give a quoted minimum draught of 0.25m and allow the boat to dry out. The outboard well can accommodate petrol or electric propulsion, with battery storage inside the cabin.

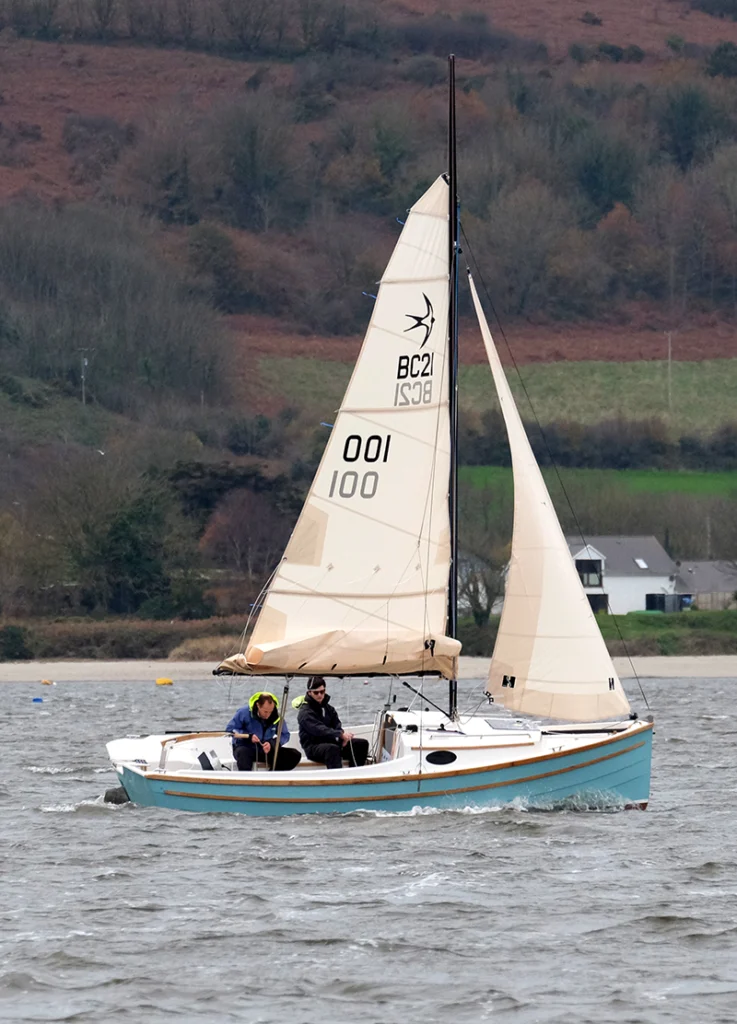

A carbon rig carries a fully battened mainsail and blade jib. The yard presents the rig as manageable by one person; the sail plan alone does not establish sailing speed or handling in particular conditions.

There is additional seating beside the outboard well and access to the water through the partially open transom. The yard describes space for a small stove beneath an optional sprayhood. A retractable bowsprit reduces the boat’s overall length when stowed.

Courtesy Swallow Yachts

The recessed foredeck has a dedicated anchor locker. Below, the footwell between the bunks separates the cabin entrance from the bedding; the designer explains the reasoning in the comments below.

The word goes to the designer

Matt Newland is the designer of the boat and owner of Swallow Yachts. His comments below describe the design brief; they are the designer’s account, not independent test findings:

The idea behind the design was to improve on the Bay Raider expedition, which was already our biggest selling model and a very important boat in our range. It was essential we did not lose the character or features of the original, making only improvements, in certain key areas:

A longer waterline length, with slightly more sail area in a more efficient sail plan. These factors combine to give better sailing performance.

Fully self-draining cockpit, with or without the water ballast – you can leave her on the water safe in the knowledge she will never fill up with rain water.

Side decks you can walk on. We took the trouble to angle these and make them as easy as possible to walk on, within the confines of the beam. There is a sturdy toe rail outside the side deck to keep your feet secure.

A better view over the cabin roof. More freeboard allows the seats and backrests to be a little higher, relative the cabin roof, meaning you no longer need to sit rigidly upright just to see ahead.

The cabin bunks have been redesigned so that you step down into a footwell between the heads of the two bunks. This makes it easier to get in and out, but more importantly keeps wet feet well away from any bedding.

Dedicated space for a chemical toilet in the cabin, that slides away under the cockpit floor when not in use. When daysailing, guests can close the cabin and have privacy.

Courtesy Swallow Yachts

BayCruiser 21 specs

Hull Length: 6.02m (20’)
Length Water Line: 5.67m (18’7”)
Beam: 2.18m (7’ 2”)
Weight (empty): 600kg (1322lbs)
Water Ballast: 400kg (881lbs)
Draught (keel up): 0.25m (10”)
Draught (keel down): 1.5m (4’11”)
Sail Area: 19sqm (204 sqft)

↑
